Because of the advantages they provide, steel beam retaining walls are becoming popular and more frequently used in mitigating soil erosion, terracing, or substructure support in construction projects. These structures include steel beams that are anchored into the ground with the aim of stopping soil mass movements and are commonly used across both residential and commercial settings. Steel makes for an excellent material for the construction of retaining walls due to its natural capacity to withstand extreme weather, has high tensile strength, and its durability. This article is expected to encompass all the aspects of steel beam retaining walls, including the designs, installation and benefits, as well as challenges posed by this type of construction. If you are a homeowner intending to implement some landscaping or a contractor who is looking for materials for a bigger development, you will find this article very helpful.

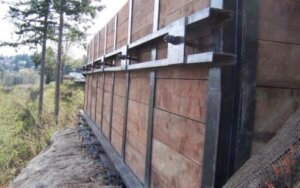

So, what exactly is a Steel Beam Retaining Wall?
A steel beam retaining wall is a horizontal structure that is sub-structurally parallel to the earth’s surface and is placed in order to prevent lateral movement or shifting of soil or rock masses. This retaining wall is comprised of a vertical composite of steel beams that are spaced apart and placed into the soil to construct a single wall that is able to withstand cement lateral forces.
Steel beam retaining walls are particularly employed in cases when concrete, timber or stone walls might be difficult to employ. They perform exceptionally well in conditions where the available space is restricted, where the bearing capacity is a critical factor and also when the topography is slightly or quite undulating.
The main elements of this type of system are as follows
- Steel beams: The basic elements serve as vertical components of the system and transfer loads and pressures occurring due to the soil masses.
- Capping beams: These are the horizontal elements for the top connection of the vertical steel beams.
- Tiebacks: These longitudinal beams are placed to help keep the wall in an upright position, preventing it from a state of tilt or lean.
- Backfill: Soil or gravel, such material, is a pole used to fill the row behind the wall in order to distribute weight evenly and give the area around the wall a compact structure.
Summary of Various Types of Retaining Walls
| Wall Type | Material | Durability | Cost | Best Use Case |
|---|---|---|---|---|
| Steel Beam Wall | Steel | High (with treatment) | Moderate | Heavy-duty applications, tight spaces |
| Concrete Wall | Concrete | High | High | Large-scale, permanent structures |
| Timber Wall | Wood | Moderate to Low | Low | Landscaping, light-duty applications |
| Stone Wall | Natural Stone | High | High | Aesthetic applications, terracing |
Benefits of Steel Beam Retaining Walls
Guaranteed Longevity
Steel beams retain a high strength-to-weight ratio, meaning that they can support heavy loads and take up little space; they can also resist environmental hazards present in soils, such as moisture or rust if maintained properly.
- As a result, Steel retaining walls are able to withstand destruction as opposed to timber walls, meaning they can be able to stand for decades if properly maintained.
- Potential: Its potential seems endless as steel beams are able to withstand a lot of pressure, which is ideal for areas with unstable soil or heavy rainfall.
Cost-Effectiveness
Among other types of structures, Steel–retaining walls are the cost-effective solution, especially when the labor and material costs are high. Steel beam walls are economical since less labor is required to erect them because the beams are easy and quick to fix. Furthermore, the raw material for reinforcing concrete is also more expensive than Steel raw materials.
Flexibility and Adaptability
The versatility of steel beam retaining wall systems is outstanding. They are suitable for a variety of soil types and topographies. With respect to the nature of the soil, steel beams are very malleable to deformation. One of the advantages of Steel is its ability to be made into many shapes, so many retaining wall forms have been developed that have various angles, hydrobearing and other advanced features. Thus, engineers and designers are free to incorporate Steel’s extensibility into their designs.
Sustainability
Last but not least – Steel is – one of the most efficient in terms of resource utilization since it can be recycled. Steel does not have much waste in its manufacture, and a lot of Steel retaining walls have post-consumer recycled materials in them. Using Steel would address environmental issues associated with construction and, therefore, would make it suitable for green building consumers and contractors.
Steel Beam Retaining Walls’ Design and Installation
Design Considerations
A number of important issues need to be addressed prior to the erection of a steel beam retaining wall, such as:
- Soil Type: The type of soil (clay, sand, loam) that will determine the design and depth of the steel beams.
- Wall Height: Pressure on a wall increases as its height increases, resulting in the use of stronger steel beams.
- Drainage: Water pressure accumulation behind the wall may cause structural failure; hence, there is a need for the wall’s design to include weep holes and drainage pipes.
- Access and Aesthetics: It should also be highlighted that with regard to a house, the wall should be easy to reach and construct. The landscape can also be matched with the steel color, texture, and finish.
Installation Process
The construction sequence of a steel beam retaining wall entails the following stages:
- Site Preparation: Remove all debris, rocks or vegetation in the area in order to provide a suitable base for the retaining wall.
- Excavation: The excavation is done to set the first row of steel beams and to make sure that the trench is leveled.
- Placing Steel Beams: Steel beams are placed vertically to be hammered underground through the designated spacing as per the wall design.
- Backfilling: Once the Steel is up, the region behind the wall is backfilled with either gravel or soil.
- Capping and Anchoring: Horizontal capping beams are placed, and any tiebacks or anchors are installed for stability.
- Final Touches: A last inspection is done to check the integrity of the wall and to check whether drainage systems are able to work properly.
Common Problems and their Remedial Measures
Though steel beam retaining walls are useful in a variety of construction works, there are a few setbacks that need to be ironed out during the design and installation phase.
Corrosion
- In particular, Steel is liable to ruin or rust when it’s wet or outside. To stop that from occurring:
- Beams can be made of galvanized Steel or rust-free substances.
- To prevent water from pooling behind the wall, effective drainage should be provided, as this speeds up corrosion.
Soil Settlement
In some cases, the soil behind the retaining wall can settle with time, which can cause the wall to pivot or fail. To stop this from being done:
- Soil compaction techniques should be employed while backfilling the wall so it can be considerably densified and made stable.
- The geogrid, when used within the backfill, will also help to reduce settlement.
Cost of Construction
Even if Steel may have lesser costs than other materials such as stone or concrete, the costs of erecting a steel beam retaining wall are still high, especially if it involves other operational equipment that is specialized. The expenses may be controlled by:
Hiring competent contractors that may facilitate the constriction and installation of the wall
For smaller projects, installation can be perceived as a self-help, whereas a novice should not consider this unless they are qualified and have adequate tools to carry out the task.
Steel Beam Retaining Wall Care
In edited form, Numerous simple construction elements need careful post-construction attention; these can range from inspections to minor touch-ups where elements may be prone to failure. Common maintenance tips include performing:
- Inspection: Inspect the steel beams regularly to identify signs of rust or corrosion. Examine the wall for cracks and bulging which may suggest that the wall is unstable.
- Cleaning: The wall needs to be cleaned to curb the growth of dirt, sand, and other vegetation that degenerate the Steel.
- Maintenance of the drainage systems: One should check the function of weep holes and other drainage systems and confirm that they are functioning properly so that the natural flow of water occurs at the back of the wall.
Also Read More: Is criterion washer a good brand
Applications and Case Studies of Steel Beam Retaining Walls
Steel beam retaining walls are suitable for a variety of applications starting from residential gardens to large commercial projects. Their ability to perform in a variety of construction sites makes them useful. Let’s examine some practical uses and case studies that showcase how steel beam retaining walls are applied in the real world across different settings.

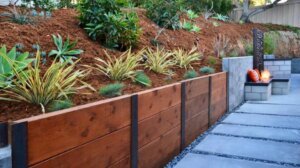

Residential Landscaping Projects
For residential landscaping projects, terracing steel beam retaining walls have grown in popularity owing to their cost and were aesthetics and beauty. They are used in the construction of terraced gardens, steep slopes and in areas with high rainfall to reduce soil erosion.
A Residential Garden in California The case study illustrated a recent project in California where a steel beam retaining wall was erected for its use in leveling the sloped backyard of a house. The requirement was to install a wall around the garden and sitting space outdoors. The beams were put into the ground up to a distance of 4 feet to enhance support, and the backfill material made up of compacted gravel and soil was used for better drainage. It was finished with a wood panel that provided support as well as solved the aesthetic appeal of the exterior of the building.
Benefits
- Cost-saving: Because the homeowners were able to save money on the construction of the wall because of its steel beam construction, they were able to defer costs to other areas of the project.
- Aesthetic Options: The choice of steel beams enabled the owners to create a simple yet elegant design that complemented the look of the garden.
Coastal Embankment
Steel beam retaining walls are an efficient resource and a necessity in regions where soil erosion is or will be a potential threat, such as coastal regions. Traditional retaining walls considering reinforcement are petrifying as they have the potential risk of treacherous conditions but steel incorporation amongst these is totally suited.
Coastal Property in Florida In a coastal property in Florida, Because of the global weather changes, we have increased the strength of sea storms. This has affected the balance at which shorelines sit – so during one such storm, steel beam retaining walls were put up along the coast of Florida for the purpose of protecting the shorelines from the growing winds and sea surge – the aim was to eliminate the erosion caused by the pressures of the ocean. What was envisioned here was to ensure that the concrete walls remained intact under extreme forces, so this wall came equipped with tieback anchors to attach the shifting soil along the polar gaps so as to create pure equilibrium. The aim was to support the reluctance of the construction – vent, in this case, vented galvanized steel beams were utilized to construct the walls, so this eliminated the rusting of wall structures and ensured their service even in salty regions.
Benefits
- Long Lasting in Extreme Conditions: Steel is a rugged metal that is best suited in coastal areas where salt remains an exposure considering it’s being exposed.
- Low Upkeep: After erecting the wall, it possessed little maintenance apart from inspection and cleaning on a periodic basis.
Infrastructure Projects on a Grand Scale
Commercial and infrastructural projects such as the construction of highways and railways or industrial construction throwing up steel beam walls behind them are also widespread. These structures are sufficient to bear the load as well as to provide earth reinforcement in places where the encroachment is more and the area is less.
Expansion of an Existing Highway in Texas While carrying out the expansion of an existing highway in Texas, the engineers constructed embankments using steel beam retaining walls along the moving highway. The retaining walls to hold back the earth mass were required to maintain the level of the road, particularly in the areas where the soil was problematic. Steel beam walls were availed since they easily withstood high loads and could be installed promptly.
Benefits
- Speed of construction: Schedules of these projects were shorter because, great, concrete alternatives took so long to be prepared that working with steel beam retaining walls made the task simpler.
- Weight-carrying capabilities: The girders and walls were able to take the burden of the pavement of the road, which did not allow the soil to displace or move.
Commercial Landscaping and Urban Design
In the cities, there is never enough space and steel beam retaining walls solve problems of building foundations, parking lots or elevated garden beds. Such walls are also used in commercial buildings for the landscaping that they need while providing the buildings with a neat and clean look.
Shopping Mall Landscaping in New York A shopping mall in New York used steel beam retaining walls to create a landscape of tiers in an exterior area that is open to the public. One of the aspects that were also included in this project was the creation of green spaces with planting areas and sitting or leisure zones for the people who would visit the area. The steel beams were fitted at intervals of the slopes to form individual planting spaces. To make the wall more appealing, it was coupled with a green screen, and due to its strength, the place would be usable for a long time.
Benefits
- Space Optimization: With the use of steel beam walls, the designers were able to optimally utilize the little space available by constructing terraces and making landscaped areas distinct.
- Urban Appeal: The modern and clean style that steel beam walls offered blended well with the design of the mall.
Frequently Asked Questions (FAQs)
What is the lifespan of steel beam retaining walls?
If properly cared for, steel beam retaining walls have a service life of over half a century. The Steel itself withholds corrosion, which also adds to its longevity.
Would it be hard to install steel beam retaining walls?
Not really. Once in place, steel beam retaining walls are much easier to put into place than forming concrete or stone walls. It still requires some planning as well as expertise.
Would residential landscaping be possible with steel beam walls?
Of course! Steel beam retaining walls create reinforcements that the person who wants to do a landscape doesn’t even need to worry about, whether it’s an inside garden or the exterior landscape of the house that enables the person to use it where space is tight, or the terrain isn’t even.
What are the installation costs for a steel beam retaining wall?
Depending on the size of the wall, the labor rate in the area, and the materials, the price varies. A steel beam retaining wall could cost approximately between $20 and $40 for every linear foot of the retaining wall when installed.
Conclusion
Steel beam retaining walls have emerged as strong, rigid, and economical solutions for restraint of soil pressure and soil erosion. In addition to their effectiveness, they require low maintenance. For dealing with any construction work either cottage buildings with a landscape garden or commercial amenities, steel beam walls are flexible and modern means of fortifying the structures.
